SPC-8137

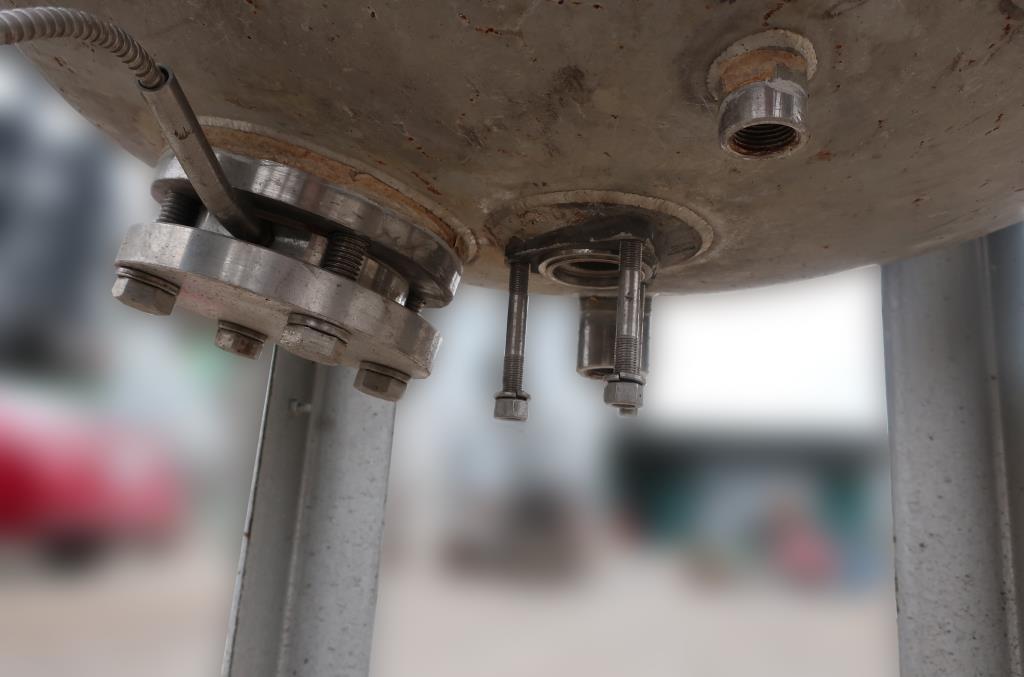

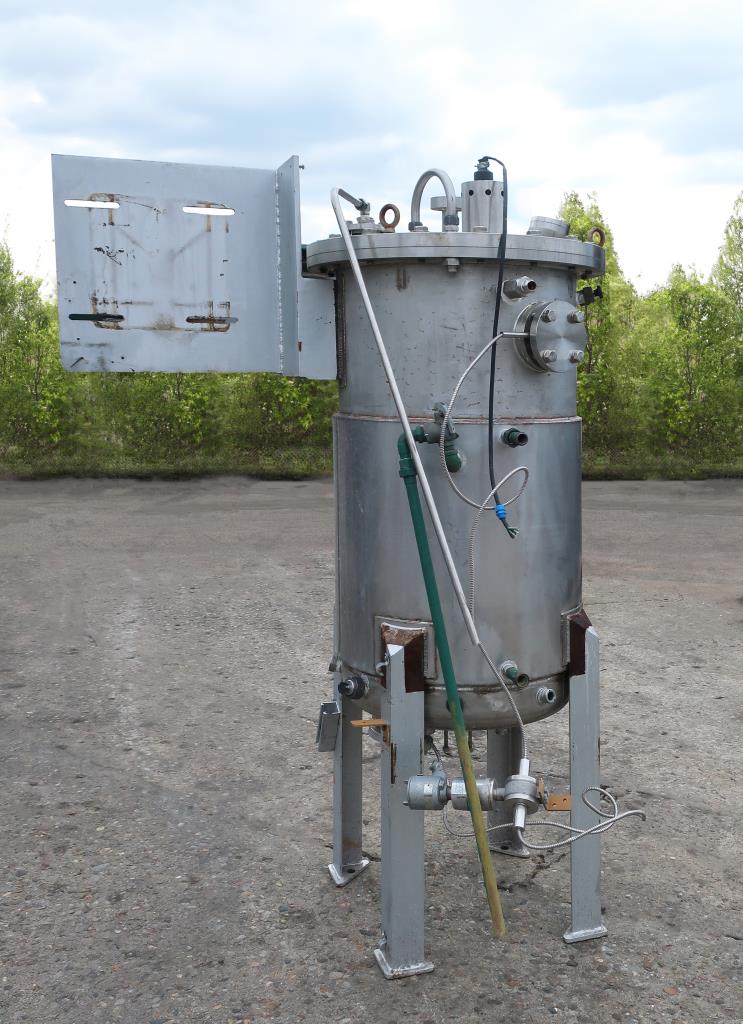

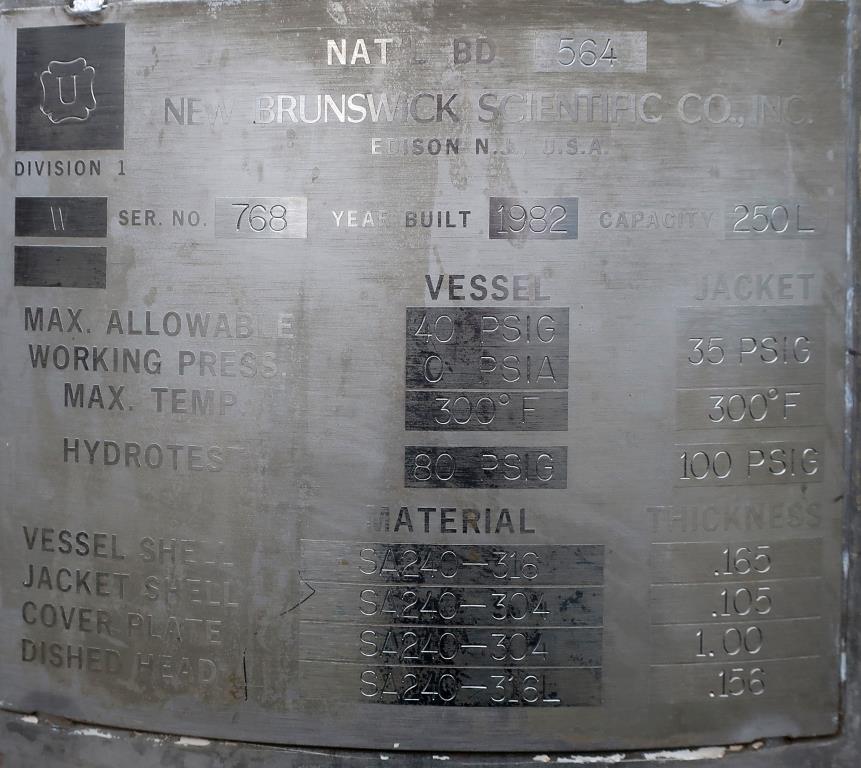

New Brunswick Scientific Co. 250L (60 gallon) capacity Stainless Steel Tank. National Board #564. Diameter is 22” with a 36” straight side with jacket on the lower 24". Vessel- Max Allowable Working Pressure 40 PSIG/O PSIA. Jacket-Max Allowable Working Pressure 35 PSIG. Vessel- Max Temp. 300°F. Jacket- Max Temp. 300°F. Vessel- Hydrotest 80 PSIG. Jacket- Hydrotest 100 PSIG. The top has an 22”RFSO with blind flange with a 1.5” agitator shaft (no motor included) , one 2” sightglass, two- ¼” plug, two- ½” plug, three-3/4” plugs, one- 1” 150lb. Pad flange, one light glass, one-2” Pressure Gauge Connection Point and three lag bolts. The top portion has one-2” padded flange, one-2” padded flange with blind, four-3/4” threded couplings with fittings, one-3/4” threaded coupling, two-1” sanitary threaded.The lower 24” jacketed portion has two- 1'” in/out and one-1 1/4” threaded coupling.Below the jacket is two- 1” couplings, two- 1” couplings with fittings, two- 1’ sanitary threaded with fittings. The bottom has one-2” padded flange with blind, one-2” threaded coupling, one- 1 ½ ” center valve flange, and one Gould Pressure Transmitter. Built 1982. Sits on four carbon steel legs. Overall Size is 71” x 49”.New Brunswick scientific Co.
Stainless Steel
Bioreactor
| Agitator | top center |
| Capacity | 250 liter |
| National Board No. | 564 |
| Psi Internal | 40 |
| Psi Jacket | 35 |
