Used Federal Pacific Transformers Company dry transformer For Sale


SPC-7691

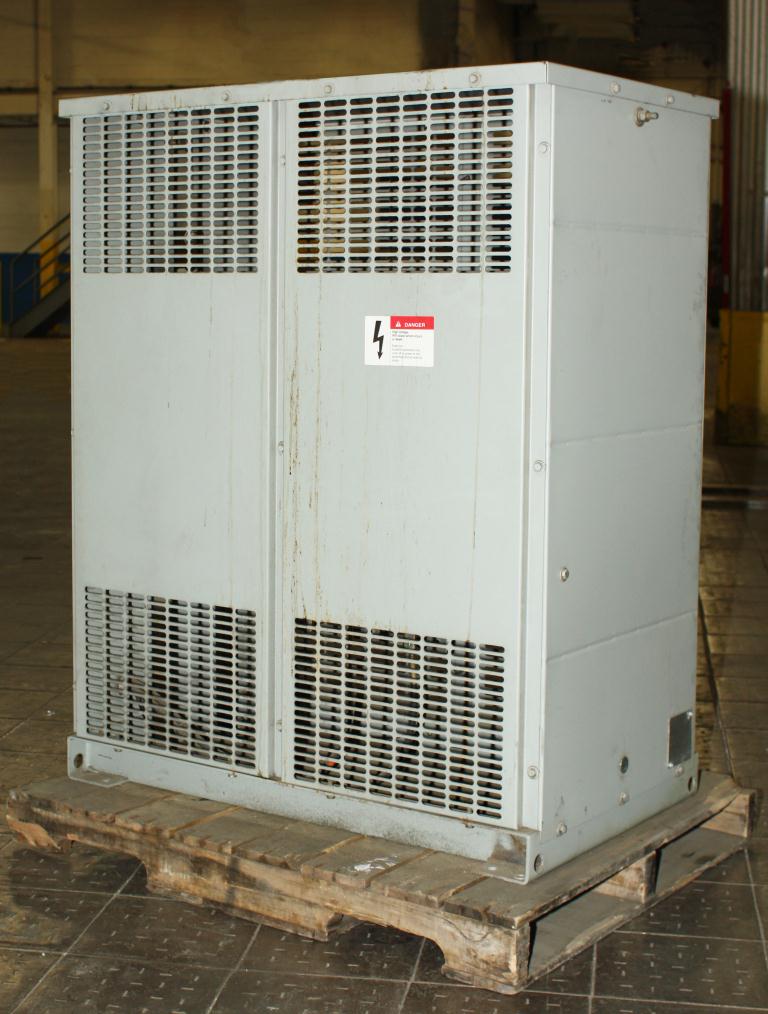

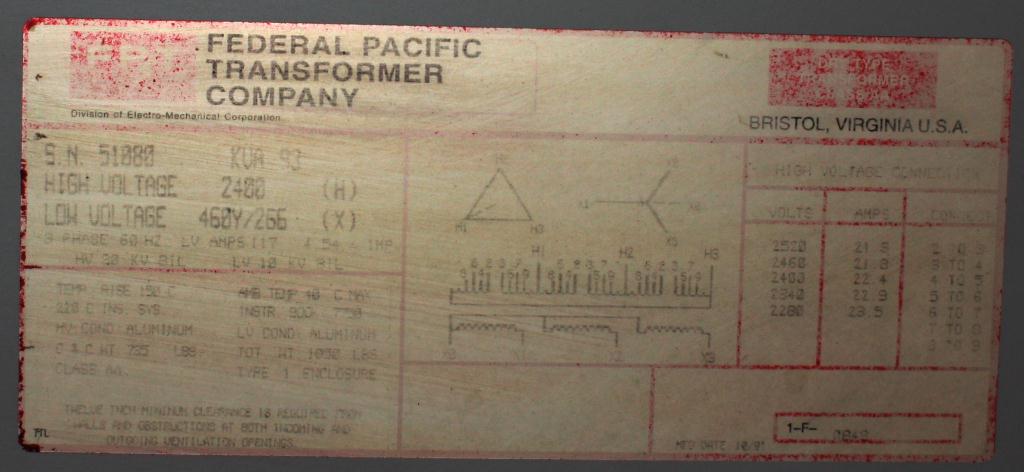

Federal Pacific Transformer Company, High Voltage General purpose Transformer. Dry-type Transformer with 93 KVA, 60 Hz frequency, and 3 phase. The transformer has a high voltage of 2400 V and a low voltage of 460Y/266. The impedance is 4.53 %. 117 Amps of Low Voltage Amps. The temperature rise is up to 150° C (302 ° F). The insulation level is 30 KV BIL for the high Voltage and 10 KV BIL for the low Voltage. HV and LV conductor Aluminum. The enclosure of type 1. Manufacture date: 11/95. 220 ° C Insulation System. Connections Table Volts Amps Connect 2520 21.3 2 TO 3 2460 21.8 3 TO 4 2400 22.4 4 TO 5 2340 22.9 5 TO 6 2280 23.5 6 TO 7 C&C Weight 735 lbs. Total weight of the Unit is 1050lbs. The Unit has 27 ½ ‘’ x 44 ½ ‘’ and 55 ½ ‘’ overall height. The serial number is 51080.

Federal Pacific Transformers Company

Aluminum

Dry Transformer

Kva 93
Phase 3
High Voltage 2400
Low Voltage 460 Y/ 266
Impedance 4.53
Special Comment Temparature Rise 150 ° C

This is only a sample of our inventory. If you do not see what you are looking for here, call, fax, or email us, we may have it in stock or we may be able to find it thru our extensive list of contacts.

We buy and sell machinery daily, therefore items listed are subject to withdrawal, change, and or prior sale without notice. Although we strive for complete accuracy, we cannot be responsible for errors in description, omissions, typographical errors, etc. We encourage your inspection of any equipment you wish to purchase. (map)

All items are sold subject to Special Projects International's standard Terms and Conditions applying.
